| Brand Name : | GAMKO |

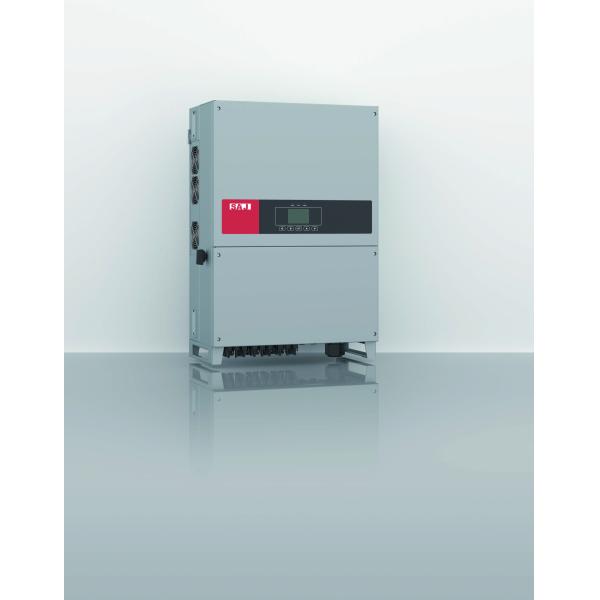

| Model Number : | Suntrio Plus 33K |
| Price : | $1,846.00/Pieces 1-4 Pieces |
Model | Suntrio Plus 25K | Suntrio Plus 30K | Suntrio Plus 33K | Suntrio Plus 40K | Suntrio Plus 50K | Suntrio Plus 60K | ||||||
Input(DC) | ||||||||||||
Max.PV Array Power [Wp]@STC | 37500 | 40000 | 40000 | 60000 | 65000 | 78000 | ||||||
Max. DC Voltage [V] | 1000 | 1000 | ||||||||||
MPPT Voltage Range [V] | 180-900 | 280-900 | ||||||||||
Nominal DC Voltage[V] | 600 | |||||||||||
Start Voltage [V] | 200 | 300 | ||||||||||
Min. DC Voltage [V] | 180 250 | |||||||||||
Max. DC Input Current [A] | 22/22/22 44/33/33 44/44/44 | |||||||||||
Number of DC Connection Sets per MPPT | 3 | |||||||||||
Number of MPPT | 2/2/2 4/3/3 4/4/4 | |||||||||||
DC Switch | Integrated（Optional） | |||||||||||
Output (AC) | ||||||||||||
Rated AC Power [W] | 25000 | 30000 | 30000 | 40000 | 50000 | 60000 | ||||||
Max. AC Power*1[VA] | 27500 | 30000 | 33000 | 44000 | 55000 | 60000 | ||||||
Rated AC Current [A]@230Vac | 37.9 | 43.5 | 45.5 | 58 | 72.5 | 87 | ||||||
Max. AC Current [A] | 42 | 50 | 50 | 65 | 80 | 90 | ||||||
Nominal AC Voltage/ Range [V] | 3/N/PE, 220/380V, 230/400V, 240/415V; 180V-280V/312V-485V | |||||||||||
Grid Frequency/ Range [Hz] | 50Hz, 60Hz / 44Hz-55Hz, 54-65Hz | |||||||||||
Power Factor [cos φ] | 0.8 leading~0.8 lagging | |||||||||||
Total Harmonic Distortion [THDi] | < 3% | |||||||||||
Feed-in | 3L+N+PE | |||||||||||
Efficiency | ||||||||||||
Max. Efficiency | 98.6% | 98.8% | 98.8% | 98.8% | 98.8% | 98.9% | ||||||
Euro Efficiency | 98.4% | 98.5% | 98.5% | 98.5% | 98.5% | 98.6% | ||||||
MPPT Accuracy | >99.5% | |||||||||||
Protection | ||||||||||||
Internal Over-voltage Protection | Integrated | |||||||||||
DC Insulation Monitoring | Integrated | |||||||||||
DC Surge Protection | Integrated | |||||||||||
Grid Monitoring | Integrated | |||||||||||
AC Short Circuit Current Protection | Integrated | |||||||||||
AC Grounding Detection | Integrated | |||||||||||
GFCI Monitoring | Integrated | |||||||||||
DCI Monitoring | Integrated | |||||||||||
AC Surge Protection | Integrated | |||||||||||
Thermal Protection | Integrated | |||||||||||
Anti-island protection monitoring | AFD | |||||||||||
Interface | ||||||||||||
DC Connection | MC4/H4 | |||||||||||
AC Connection | Terminal Block | |||||||||||
Human Machine Interface | LED+(bluetooth/Wi-Fi+APP) | |||||||||||
Communication Port | 2*RS485、1*RS232 | |||||||||||
Communication Mode | Wi-Fi/GPRS/Ethernet （Optional ) | |||||||||||
General Data | ||||||||||||
Topology | Transformerless | |||||||||||
Consumption at Night [W] | <0.6 | |||||||||||
Consumption at Standby [W] | 10 | |||||||||||
Operating Temperature Range | -25°C to +60°C（45°C to 60°C with derating） | |||||||||||
Cooling Method | Intelligent fan | |||||||||||
Ambient Humidity | 0-100% Non-condensing | |||||||||||
Altitude | 3000m （＞2000m power derating ） | |||||||||||
Noise [dBA] | <35 | |||||||||||
Ingress Protection | IP65（Indoor & Outdoor Installation） | |||||||||||
Mounting | Rear Panel | |||||||||||
Dimensions [H*W*D][mm] | 700*530*260 800*550*280 | |||||||||||
Weight [kg] | 48 | 68 | ||||||||||
Standard Warranty [Year] | 5 (standard)/10/15/20/25 (Optional) | |||||||||||
Applicable Standard | IEC62109-1/2, IEC61000-6-2/3,
IEC61683,IEC60068-2,IEC62116,IEC61717,PEA/MEA,NRS 097-2-1,
UTE-C-15-712-1,VDE0126-1-1/A1, VDE-AR-N 4105, AS4777.2,AS4777.3,C-TICK,CQC NB/T 32004, G83-2,G59-3,NBR 16149,NBR 16150,TF 3.2.1 | |||||||||||
Remarks: * According to C10/C11, Max. AC Powe=Rated AC Power | ||||||||||||
|
|
